  • Welded Mesh Panels

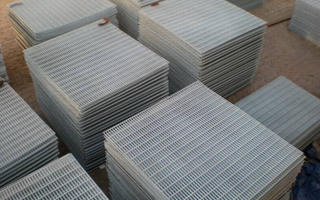

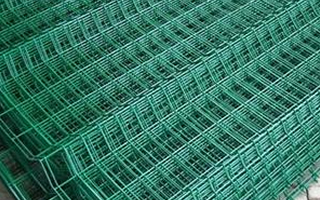

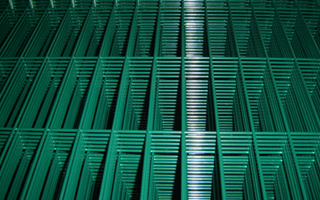

    Welded mesh panel is product with Iron wire so also say as Iron welded wire mesh panels, widths run to 2,400 mm and panel lengths to 6,000mm and a range of materials are used in the manufacture of welded mesh including bright steel, galvanised and stainless steel wire. Welded mesh is made in wire diameters from 3.15 mm to 8 mm and production runs range from several panels only into the tens of thousands.

    Welded Mesh Panel are widely used in construction reinforcement, the ground for the tunnels, bridges, highway, airport and wharf, also in construction of wall body.

    welded wire mesh panels

    wire Gauge (mm)

    aperture(m)×aperture(m)

    width(m)

    length(m)

    2.0

    1″×2″

    2.5

    5

    2.5

    2″×2″

    2.5

    5

    3.0

    2″×3″

    2.5

    5

    3.5

    3″×3″

    2.5

    5

    4.0

    3″×4″

    2.5

    5

    4.5

    4″×4″

    2.5

    5

    5.0

    4″×6″

    2.5

    5
